curve roofing forming machine - ZTRFM

2022年2月10日

Arch metal curve roofing forming machine is designed to do the crimping or curving on the metal roofing sheets. It can be used to make the curve roofing itself; it can be used to make the curveing by bending degree. Normally speaking, each punching it can change 10 degree and the punching degree is adjustable.

Not all the shape could be made by the Arch metal curve roofing forming machine, her I take some sample to show the machine design and how it works.

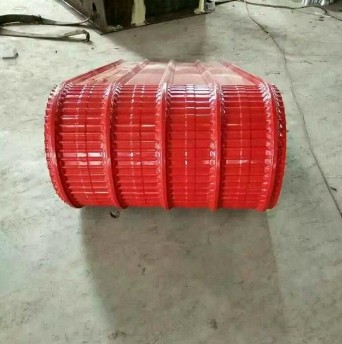

For the arch metal curve roofing forming machine, it handles the metal roofing sheets like this. When do the curve roofing sheets, it handles like this:

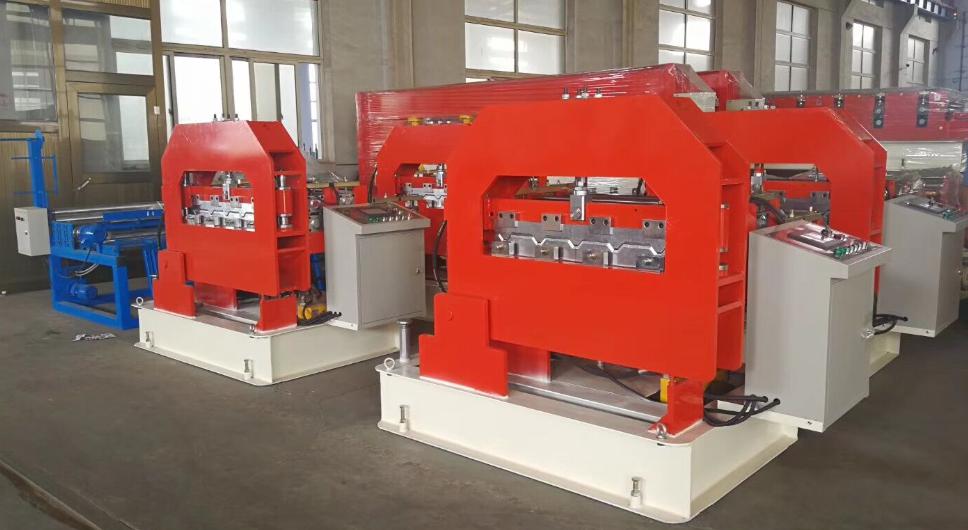

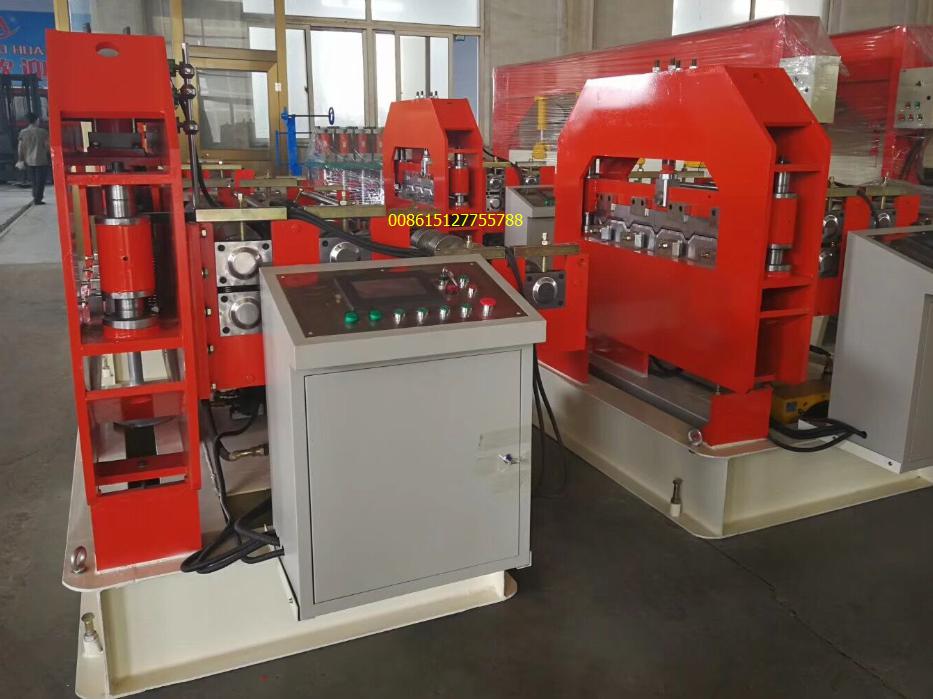

Arch metal curve roofing forming machine design like this:

Main parameters of arch metal curve roofing forming machine

2 Dimension of line Main machine:2300*1650*1600mm
3 Weight About 1.5T
4 Feeding roller material 45# high steel,machine by CNC, chormed 0.05mm
5 Shafts 70mm
6 Feeding steps 2 pass
7 Main motor power 3Kw    Stepper motor(run accurately)
8 Hydraulic motor power 4Kw
9 Voltage 380V/3phase/50HZ(or as your requirement)
10 Material Color steel plate
11 Drive type Wheel gear driving,running by stepper motor
12 Thickness 0.3-0.8mm
13 Crimping mould Cr12 high steel,quenched
14 Productivity 5-10m/min (not including the cutting time)
15 Control system Delta PLC box with inverter, ouch screen

Here are some parameters of the Arch metal curve roofing forming machine for your reference:

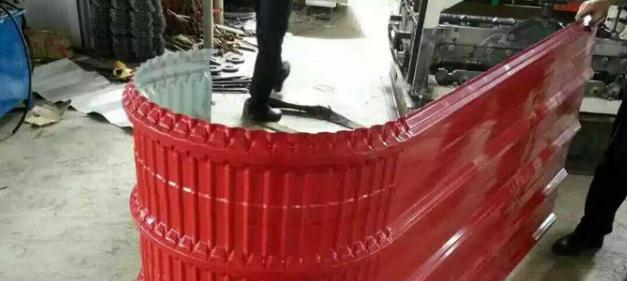

Arch metal curve roofing forming machine finished products for your refernece:

For this machine, if you want to know more information, please contact us at any time.
