IBR ROOFING SHEET MACHINE - ZTRFM
Zhongtuo IBR roofing sheet machine
IBR roof panel roll forming machine
Trapezoidal Metal Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
The prduct features as following
1 More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
Product Parameters
| No. | Item | Unit | Parameter | Remark | |
| 1 | Material | ||||
| Type | PPGI, PPGL, GI, GL, PPAL | As requirement | |||
| Thickness of Material | mm | 0.3-0.8mm | As requirement | ||
| 2 | Material Width | mm | 914-1650 | As requirement | |
| 3 | Production Speed | m/min | Common speed: 0-12m/min | Adjustment | |
| High speed | As requirement | ||||
| 4 | Effective Width of Product | mm | 760-1260mm | According to drawings | |
| 5 | Roller Material | 45#, Cr12, GCr15, GCr12MoV | As design | ||
| 6 | Drive Type | By Chain or Gear or Gearbox | |||
| 7 | Motor Power | kW | 9.5 | ||
| 8 | Brand of Electric Control System | Delta or Siemens or Schneider | Selectable | ||
| 9 | Dimension ( L* W * H ) | m | 8.5*1.45*1.5 | Based on design | |
| 10 | Warranty | Month | 15 | ||
The machine part
Decoiler ( Selectable configuration ):
( Standard configuration ): Manual simple decoiler;

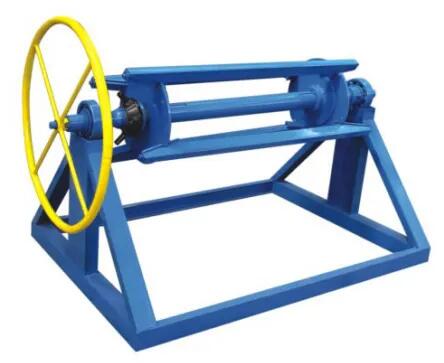

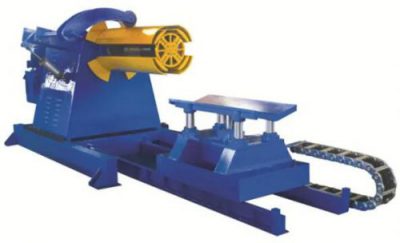

(Optional configuration ): Hydraulic decoiler;
Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm

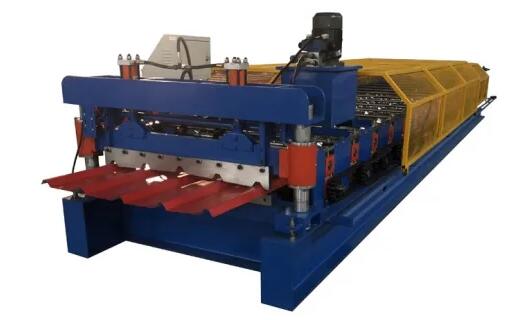

Main Roll Forming Machine:
Driving Type: Chain(common) or Gear or Gearbox;
Forming Model: Integral Forming or Split Forming;
Forming Machine structure: Medium-plate Type(common) or Arch Type or Guide-pillar type;
Roller: 45# or Cr12 or GCr15 or GCr12MoV
Shaft: 45# or 40Cr; 70mm/80mm/90mm(common) or as design;
Motor Power: 4.0kW or 5.5kW or according to the design requirements;
Main Frame: 350# or 400# H-beam steel welded.
Cutter:
Working Model: Hydraulic Cutter (common) or Electric Cutter;
Cutter Blade Material: Cr12.
Collecting Product Table
Automatic Stacker (optional configuration)–Length: According to customized;
Manual Simple collecting product table (standard configuration)–Length: 3m(common) or as customized.
