PURLIN ROLL FORMING MACHINE - ZTRFM

Fully automatic C purline, Z purlin, CZ purline rolling forming machine is designed to make the C pulrine, Z purline or CZ purlines in batch fully automatically.

Zhongtuo C Z purlin making machine

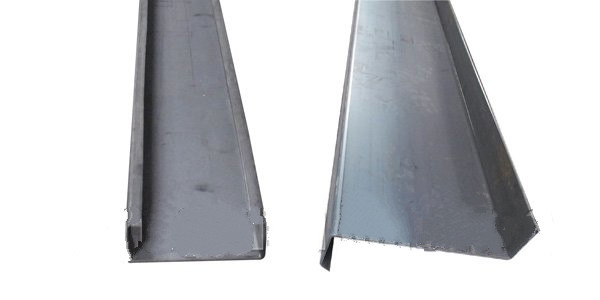

In short, the A cee and z purlins are a horizontal beam or crossbar used for structural support in buildings. In fact, it is the Perlin z steel roll forming machine, also called the interchangeable purlin roll forming machine or the z purlin roll forming machine.


CZ purlin making machine


Purlin rolling machine

With the development of roll forming technology, automatic quick change roll forming machines for the production of C and Z purlins began to appear.In fact, the purlin machine is rapidly replacing the Z shape roll forming machines. Indeed, the automatic interchangeable purlin roll forming machine can also be called PLC automatic purlin roll forming machine, one roll forming machine can produce steel purlin, flange size and edge size.

CZ rolling forming machine

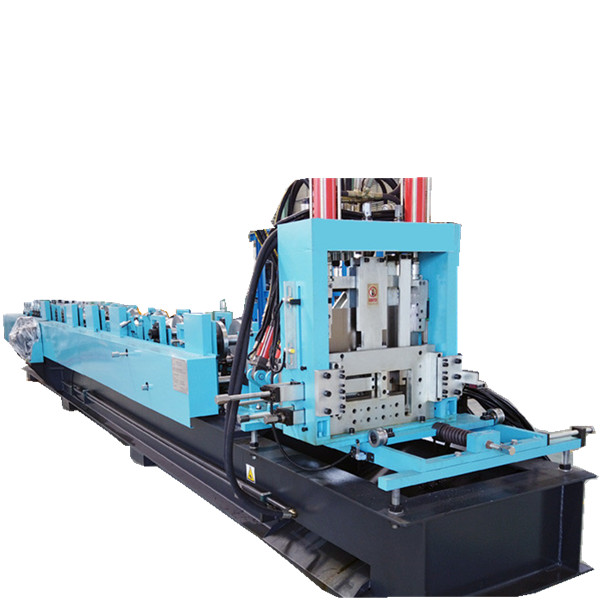

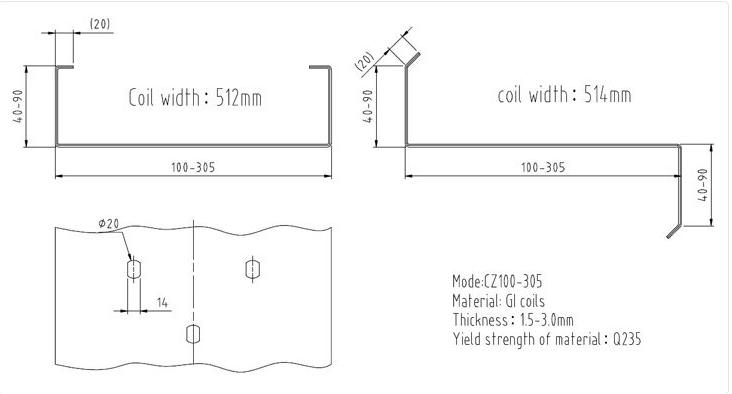

CZ changeable Purlin Forming Machine is an equipment that produces C/Z shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

CZ rolling forming machine feature

This machine can do a rapid Inter-changeable CZ Purlin Roll forming System.

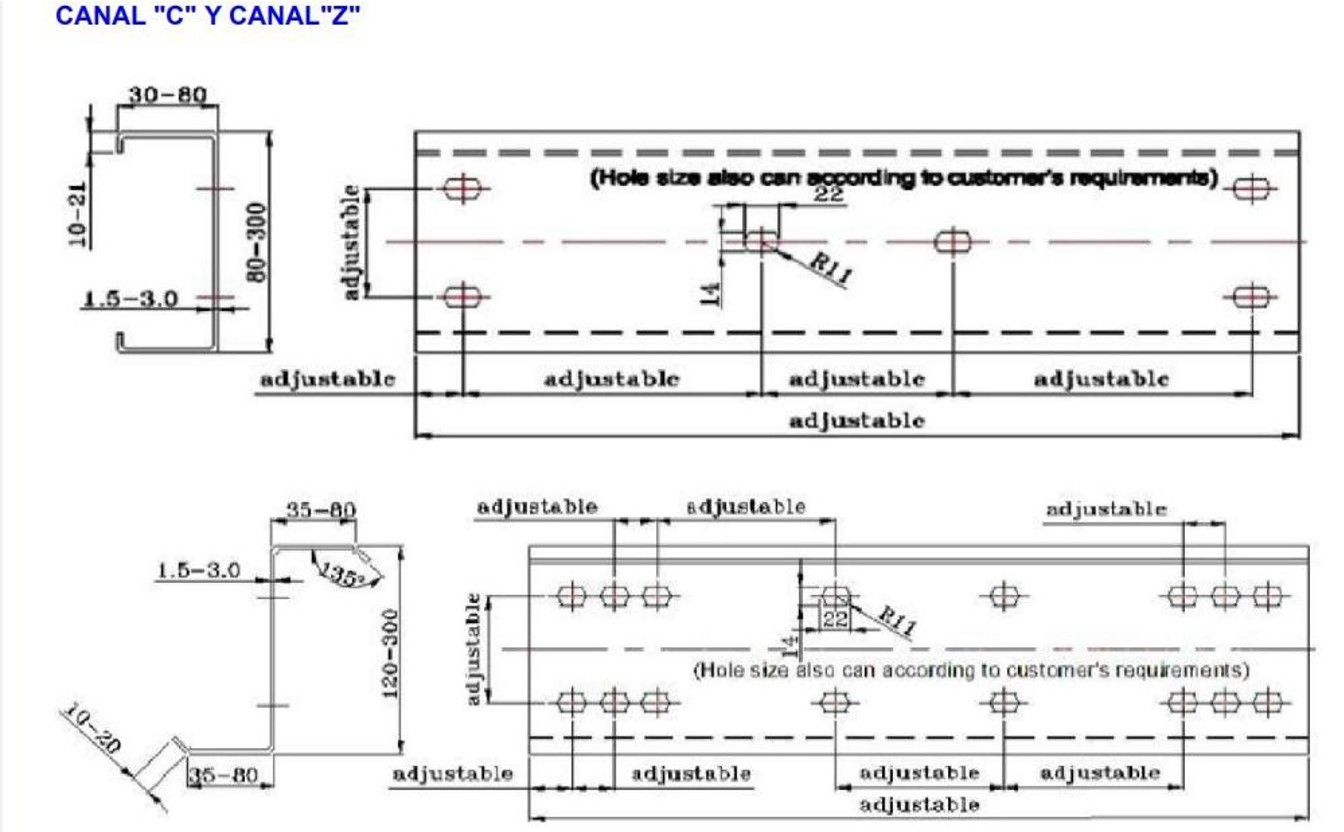

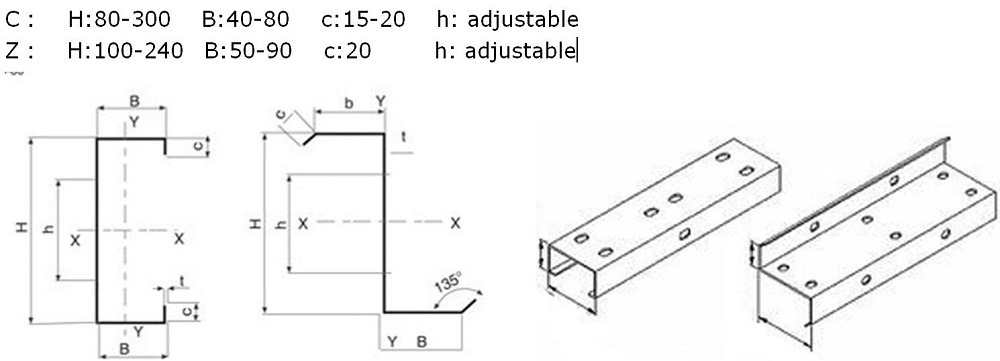

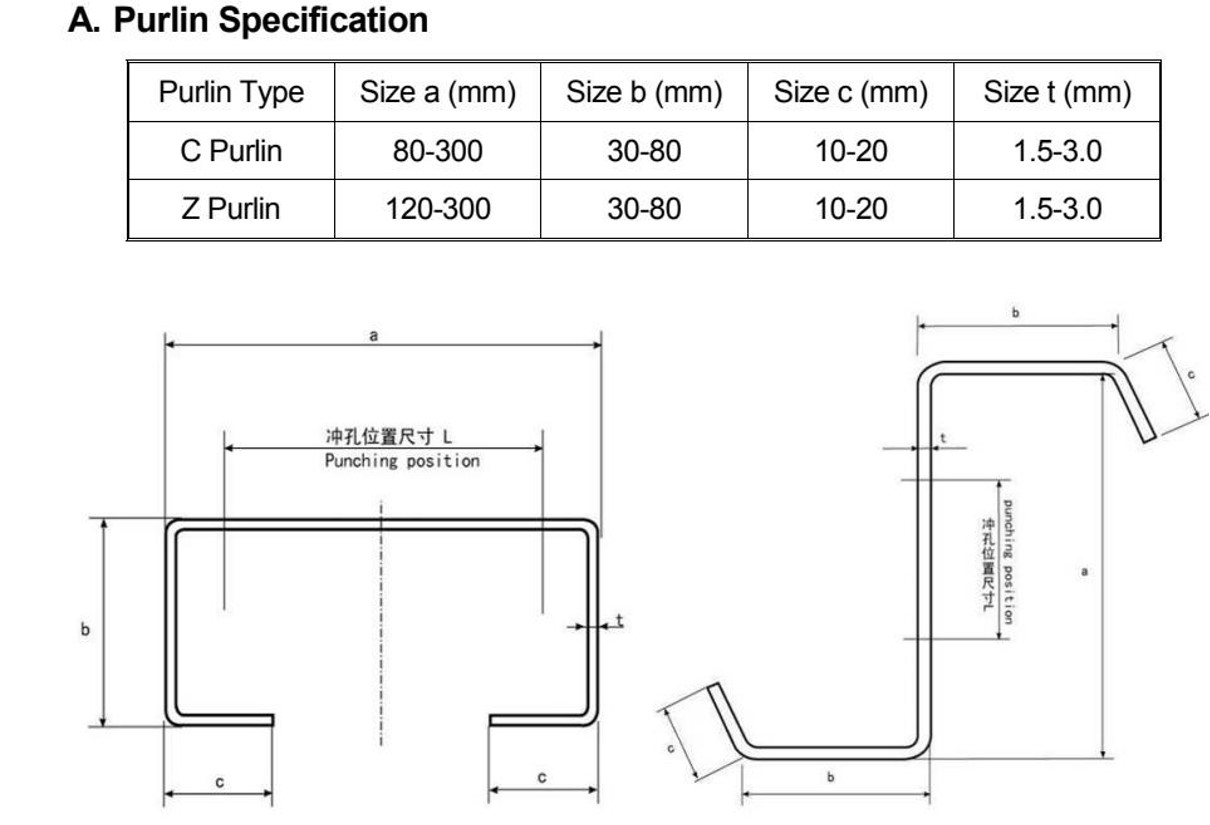

  1. Capable of producing the standard industry range of Cee, Zee, U shapes 80-300mm within the thickness of 1.5 to 3.2mm.
  2. Providing programmable modular hydraulic punching and cutting as default we give 5 types of punching dies.
  3. Rapid C/Z profiles and its size changeover times under 5 minutes.
  4. European quality control, machine surface adopts powder coating, coating before assembly.
  5. Delivery capacity 220-300 sets per year, the largest and most professional manufacturer in China.
  6. Fast delivery, once receive the deposit we can arrange the delivery within 25 days.
CZ purlin working flow

Uncoiler – (Pre-Shearer) –Leveling & Guiding – Main Roll Forming Machine – Hydraulic  Punching – Hydraulic Universal Cutting – Run out Table

Each part elements introduction
  1. 3 Ton hydraulic decoiler Or you can choose 5 ton or double head decoiler

Uncoiler type:Hydraulic single head  Capacity:5000kg

Expanding type:Hydraulic  Coiler I.D:Φ500-560mm  Coiler O.D:Max.Φ1000mm  Coiler width:Max.300mm

Dimension(L×W×H):Approx.1000×800×1650 mm

2.Leveling part

  • Leveling system: top 3 and bottom 4 rollers, with extra 2 couple of pinch rollers.
  • Leveling roller diameter: Ø 80/100mm
  • Rollers are solid shaft with heating treatment, polishing and galvanizing.
  • Guiding system including guiding shaft and guiding rollers, their width is adjustable in order to  suit for various steel strips.

3.Pre- shearer (optional)

It is used to pre-shear the coil strip before or after forming.
The pre-shearer is individual controlled by button which is installed on shearer frame.

Main Rolling Forming Machine transmission part
  • As to the main rolling forming machine, transmission, we have three options:
  • Normal motor, brand optional like Simens motor or others.
  • Servo motor.
  • Hydraulic power:
Main rolling machine
  1. Roll stand: 18 stations, chain transmission.
  2. Roller material: GCr15 with heat treatment, polishing and galvanizing.
  3. Main motor: hydraulic drive, power: 22KW, tank: 500L, with air cooling system
  4. Main shaft: 40Cr with heat treatment, polishing and galvanizing.
  5. Machine frame: welded by iron plate, with flat planer finish machining. The  levelness is measured by electronic level meter.
  6. Machine surface adopts powder coating, coating before assembly.
  7. CZ Interchange: turn over the roller box to 180 degree.

Universal Cutting System

Material of cutter: Cr12MOV, quenching.

Universal cutters: one for size (80-200mm), another for size (200-300mm)  Cutting length, cutting pieces, and punching are controlled by PLC.  Punching & Cutting when machine stop.

For this part, when sizes changing, you need to adjust the height and width by hand.

PLC control part Power Supply & Control System
  • Power supply & control cabinet: 1 set.
  • External controller: 1 set, it will be convenient for inching control FWD/BWD during testing and  production.
  • Operation platform: HMI & Button, with English language display.
  • Control system: PLC (Omron)
  • Key components adopts international famous brand.
  • Optional: Servo Main Motor, PLC, HMI, Control Program etc. complete electrical control system  designed with Industrial Siemens Smart Line.









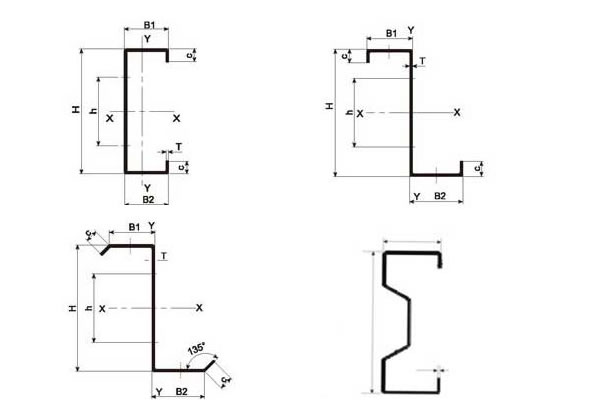

More types:

Light duty with one Touch control from C to Z
