Zhongtuo rolling shutter door guide door rail roll forming machine is designed to produce the shutter door rails in batch fully automatically.

Zhongtuo door track door rail roll forming machine

The door roll former is used to make various guide rails. A guide rail is a device or mechanism to direct products, vehiclesor other objects through a channel,conveyor, roadway or rail system.Our guide rail forming machine can make guide rails forgarage door, roll shutter door, elevator or lift shafts and so on.


Rolling shutter door track roll forming machine


Zhongtuo rolling shutter door track door rail roll forming machine

Zhongtuo rolling shutter door track door rail roll forming machine is designed to produce the shutter door rails in batch fully automatically. For the door track and door rails, in the market, there are many types, here I will introduce one special one with the anti-noise function.

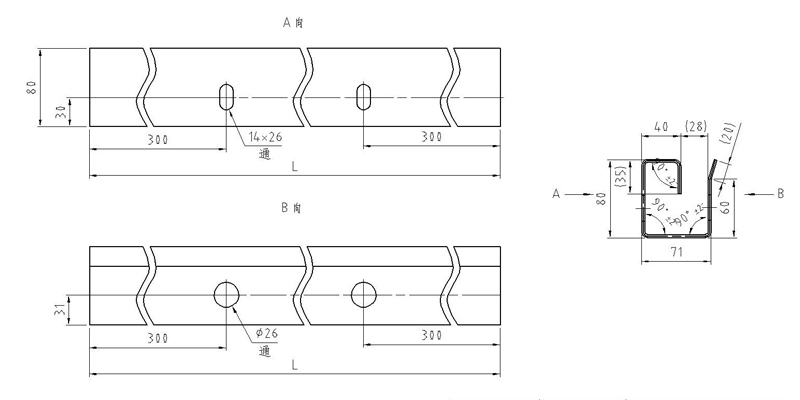

Rolling shutter door track or guide rails are usually made out of galvanized steel or cold

rolled steel strips with thickness 1.2-2mm and whenever there is a roller shutter door or a

sliding door installed, there will be the door track or guide rails.

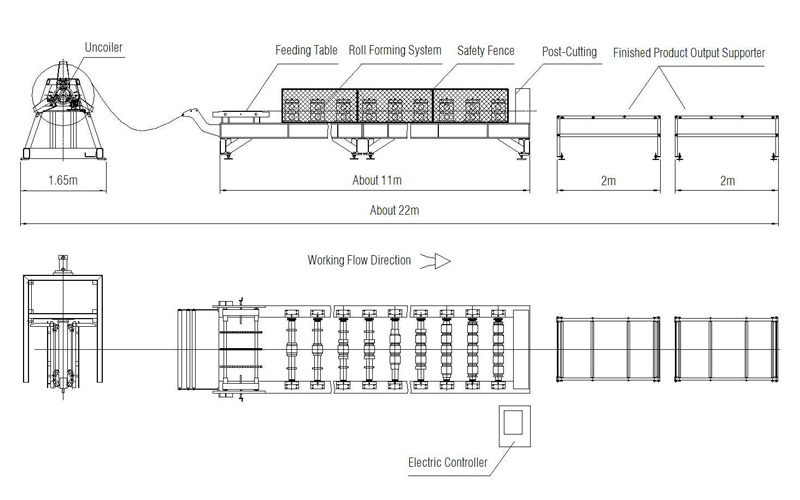

Here are some parameters of Zhongtuo rolling shutter door track door rail roll forming machine for your reference:

Uncoiler: Manual Uncoiler

Loading Weight: 3T

Inner Diameter: 480-520mm

Outer Diameter: Max 1250mm

Leveler: with a Feeding Guide Unit

7-Roller Leveler: 3 rollers up and 4 rollers down with no power

Leveling Thickness: 2mm maximum

Diameter of Leveling Roller: 76mm

Main Structure of the Machine: 36# “H” Beam Steel

Rolling Stations: 24 stations

Forming Speed: Approx. 8-12m/min

Diameter of Shaft: 65mm

aterial of Shaft: 45# steel with heat treatment

Material of Roller: Gcr15 Bearing Steel

Transmission: Chains-bracket

Main Motor Power: 11KW (subjected to final design)

Cutting: Hydraulic cutting

Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touch screen

Electrical Motor Power: 3KW (subjected to final design)

Tolerance of Cutting Length: +/-2mm

PLC Control Box: 700mmx1000mmx300mm

Computer Control System: Panasonic PLC

Encoder: Omron Brand

Voltage: customize.

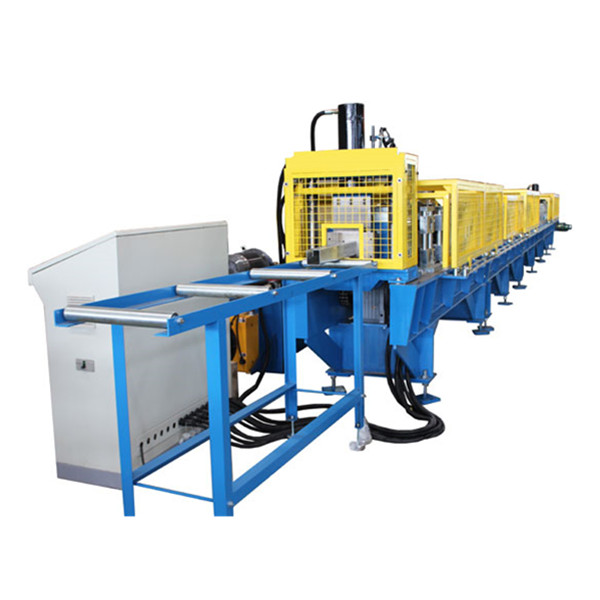

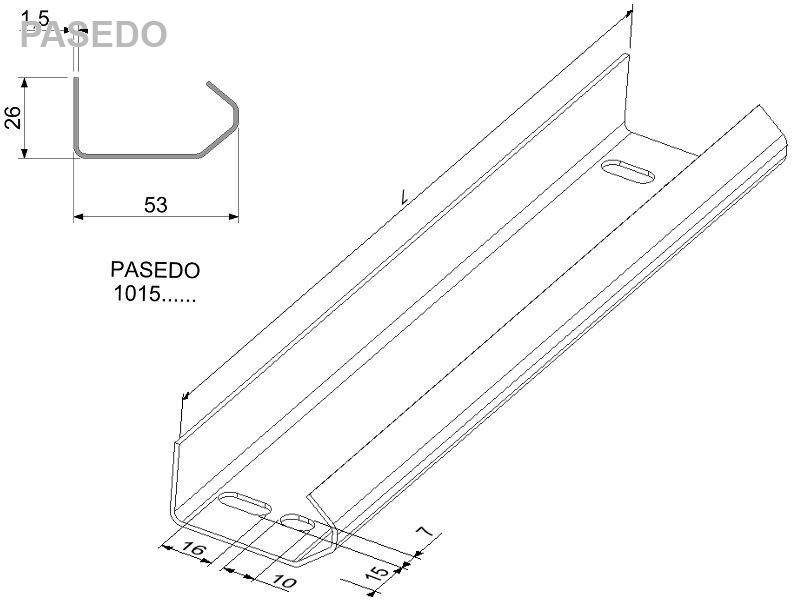

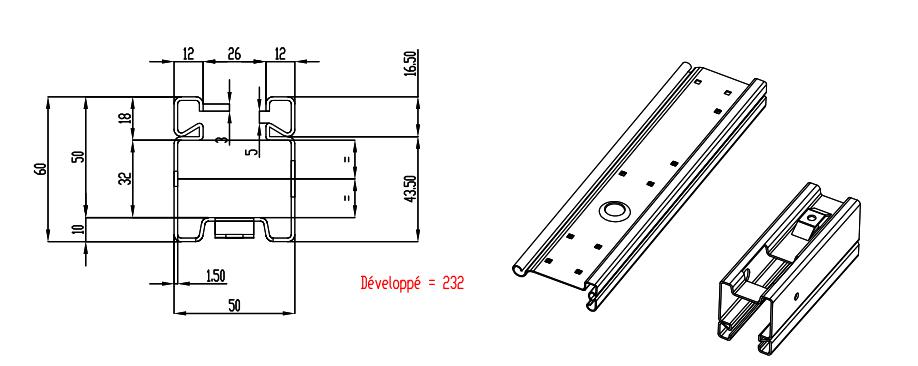

Garage Door Guide Rail Roll Forming Machine

This garage door roll former is used to make various guide rails. A guide rail is a device or mechanism to direct products, vehiclesor other objects through a channel,conveyor, roadway or rail system.Our guide rail forming machine can make guide rails forgarage door, roll shutter door, elevator or lift shafts and so on.

Features and Advantages of Garage Door Guide Rail Roll Forming Machine

  1. Garage Door Roll Forming Machine, specially designed for forming rolling shutter door panel, under mass-production.
  2. Production speed: 20/30/40/50/60 m/min optional.
  3. Working with non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.
  4. Cassette type platform quick change Machine base for multi-profile purposes is available for choice.
  5. 5.Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.
