Roof ridge cap rolling forming machine is designed to make the ridge cap in batch fully automatically.

Zhongtuo ridge cap roll forming machine

A Roof Ridge Cap Roll Forming Machine is for producing Roof Ridge Caps for Steel Building System. ZT machinery have several designs of roll forming machines for caps.It is used to produce metal roof ridge tile which is one type popular metal construction material,this material is usually used with other metal roof sheets,they are widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.It has the advantage of beautiful, classical appearance and grace taste.


Roofing ridge cap forming machine


What is the roof ridge function, where is used for ?

As the name shows ridge of a sloped roof system is the highest horizontal top area where the two roof sheets meet. Because ridge cap shingles cover the peak of the roof, where two angles meet, they play a critical role in keeping rain and thawed snow from leaking into the house. And because ridge cap shingles are bent over the roof, they can deteriorate quicker than the rest of the roof surface.

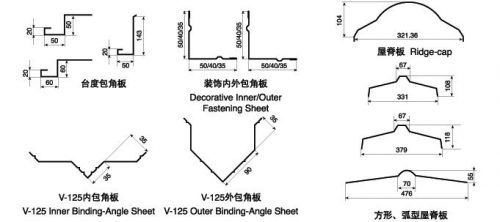

There are different roof ridge cap roll forming machines based on different demands of the steel roofing systems. Most of all, there are 3 kinds of roof ridge cap machines in the market. Roof Tile Ridge Caps, Metal Roof Ridge Caps, V Shape Caps. And the V shape ridge caps sometimes used as a roof valley f lashings.

ROOF RIDGE CAP ROLL FORMING MACHINE Machine Components

Same like other rolling forming machine, this one is also composed by Strips Uncoiler, roof ridge cap roll former with drive system and shearing system. Punching and stepping system, PLC system, and hydraulic station.

Product Process of Roof Ridge Cap Roll Forming Machine

Uncoiling– Feeding– Roll Forming– Straightening– Cutting– Collecting

Brief Specifications of ridge cap machine

Uncoiler Capacity and Types: 3 Ton -5 Ton, Electric or Manual

Suitable Coil Strips: 0.25-0.6mm thickness, 300*800 mm width. I.D 508-610mm, O.D: 1000mm

Forming Rollers: 14-20, subject to final design

Rollers Material: ASTM 1045, Quenched and tempered. Chromed 0.05mm thickness

Shaft Material: ASTM 1045, hardness treatment

Motor Power: 5.5KW

Driven Method: Gear box or Chain& Gear

Cutoff De Material: CR12, heat treatment

Controlled System: Panasonic or Siemens PLC, Yaskawa Inverter, Omron Encoder, Omron Limit Switch

Voltage: 308-440V, 50-60HZ, 3 Phase

Here by the finished product, let us check the machine quality.

  1. For the profile to see the length accuracy.
  2. To check the stamping part at the same line or not.
  3. To check the stamping part and rolling part if there is any damage part or not .
