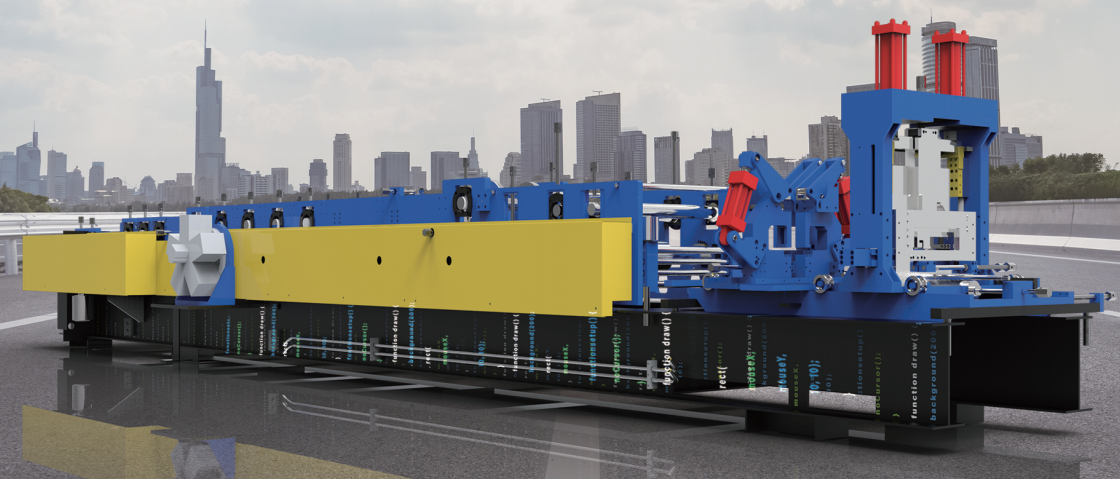

As a leading manufacturer in cold-formed steel solutions, we proudly present our fully automated CZ Purlin (Cee & Zee Purlin) production line, designed to produce high-quality profiles with widths ranging from 80mm to 300mm and thicknesses from 1mm to 3mm. Our system integrates unique embossing rollers to enhance the rigidity and strength of the final product, making it ideal for roofing, wall framing, and structural applications.

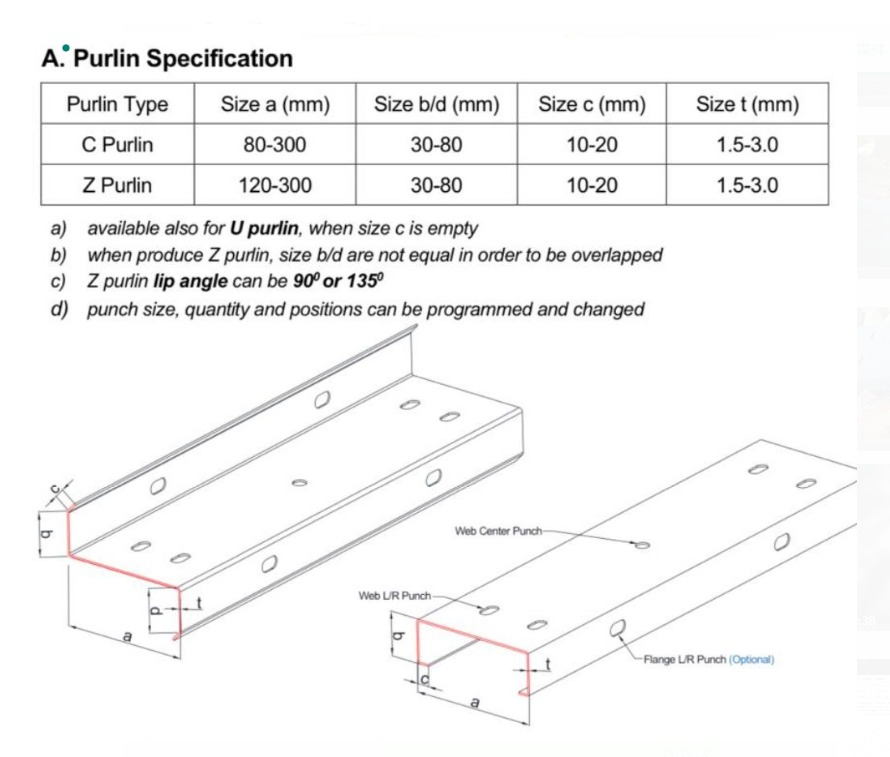

We have lots series for your reference. For example, standard CZ. Heavy duty and big scale CZ purline like picture 2. Please according to the sizes and supported material thickness to choose the proper mode rolling forming machines.

To make sure more easy to choose, we make CZ purline machine, Cee purline machine and Zee purline machine in the following mode:

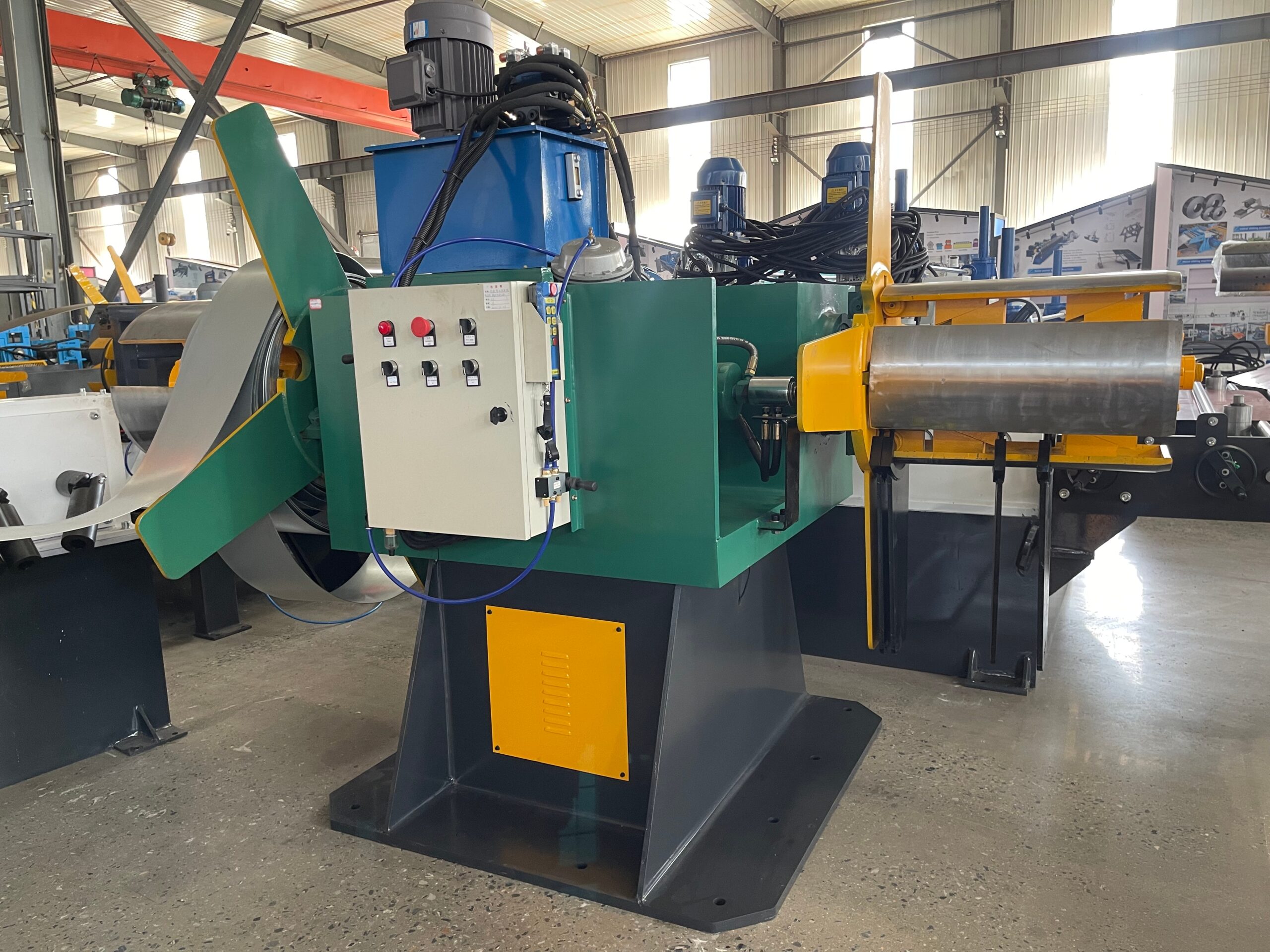

• 3 ton Double head hydraulic decoiler:

The process begins with an automated decoiler and precision leveling system to ensure flat, consistent material feed (hot-dip galvanized or pre-painted coils).

Can achieve quick change of steel coils to save work efficiency

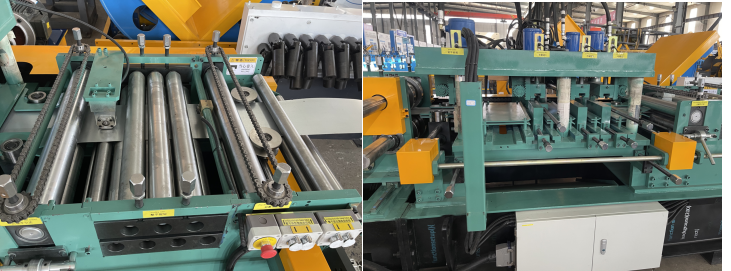

• Feeding Leveling & Punching:
  7 Rollers for the leveling, Up3 down 4 make the panel flat to feed the punching part, while punching unit adds pre-punched holes (e.g., for connections or utilities) with millimeter accuracy.And Add the button control the width adjustment.

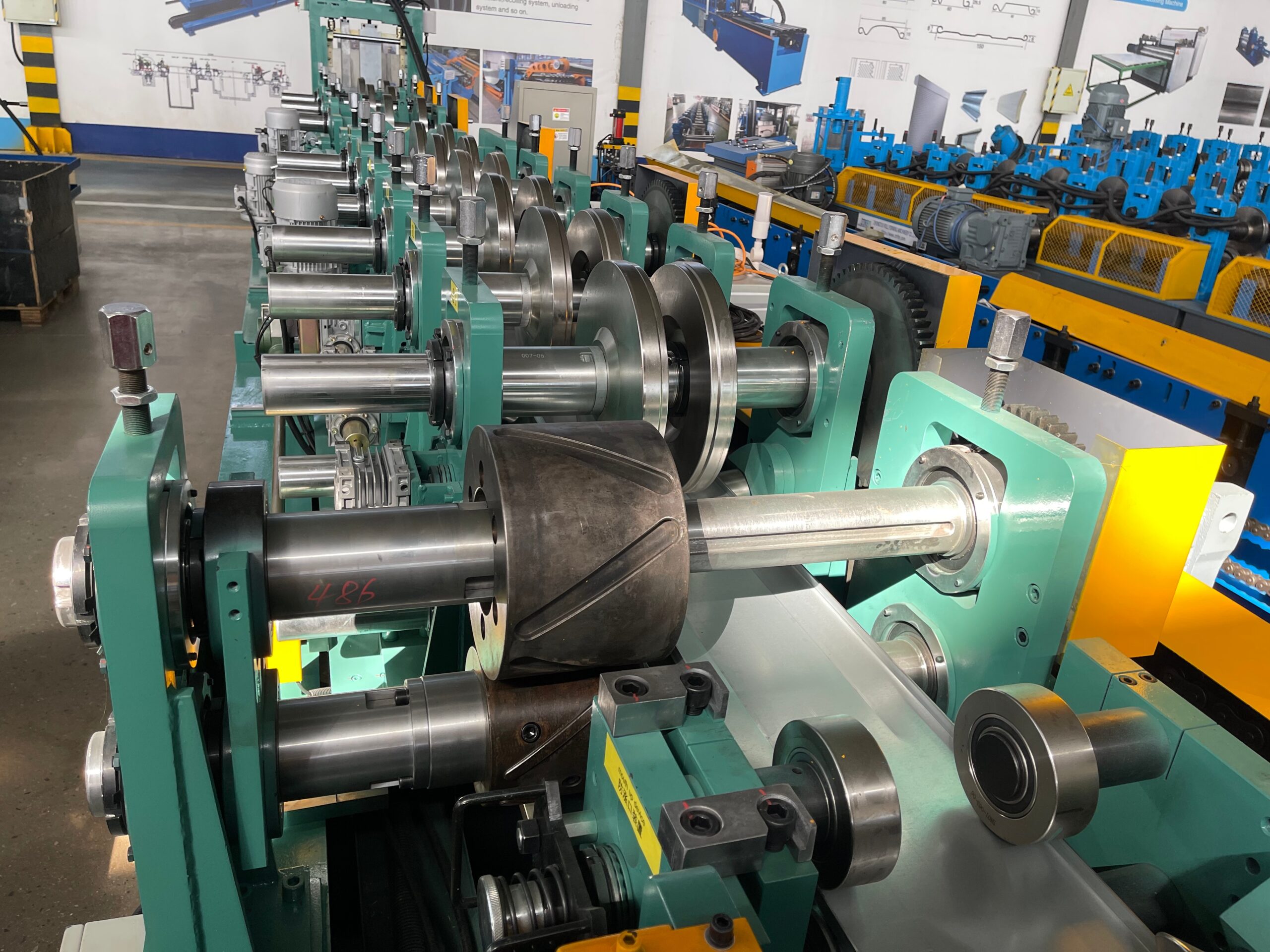

• Roll Forming with Embossing Technology:
  Our proprietary multi-stage roll forming mill incorporates embossing rollers that create optimized patterns on the CZ profiles. This increases moment of inertia (MOI) and load-bearing capacity without adding weight.

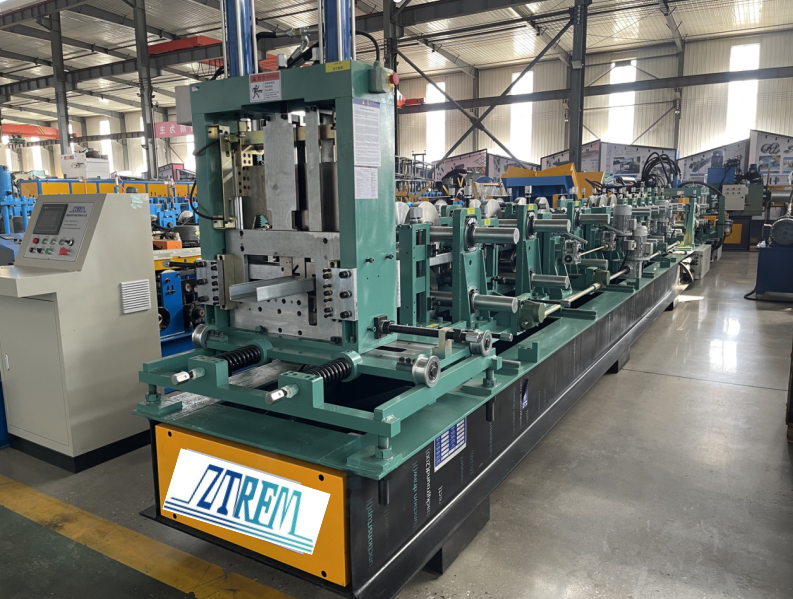

• Cutting part
  Hydraulic stepless cutting can be used in a variety of sizes. Even when changing models, there is no need to adjust the cutter, which is more convenient to operate.
