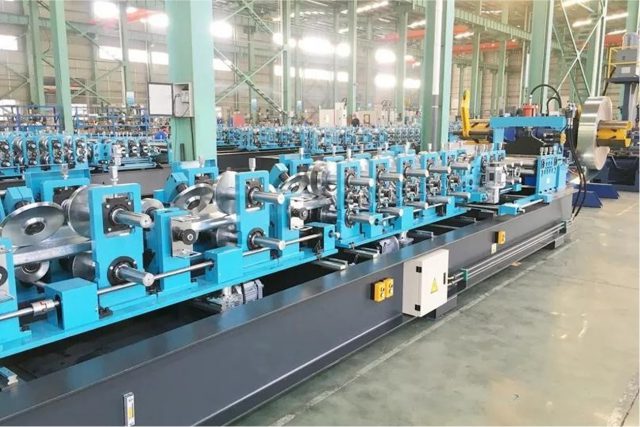

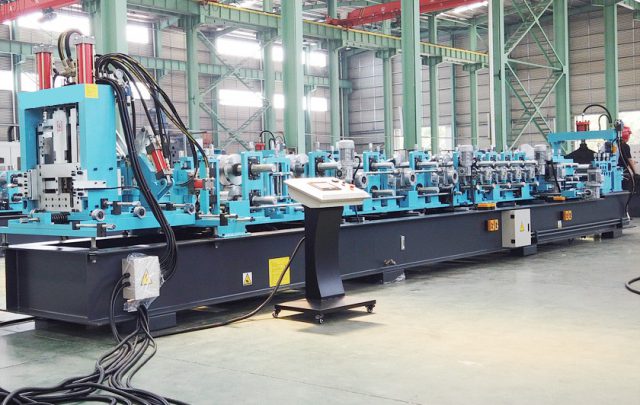

C Z Purlin Machine, also called fast change Steel Purlin Making Machine or C & Z Shape Interchangeable Rolling Machine, can be used to produce both C Purlin and Z Purlin with various sizes, in different thickness, and with punch on web and flange side.

Introduction:

The CZ Profile Interchange unit and Size Change unit of Fully Automatic CZ Purlin Machine both are controlled by PLC and change by set on touch panel. Also we have Semi Automatic CZ Purlin Machine available.

1. Raw material: galvanized sheet, black sheet; 1.5-3.0mm
2. Product size: C Purlin 80-300mm & Z Purlin 120-300mm
3. Machine speed: Max. 30 m/min (by servo motor driven)

Purlin Roll Forming Machine Main Components:

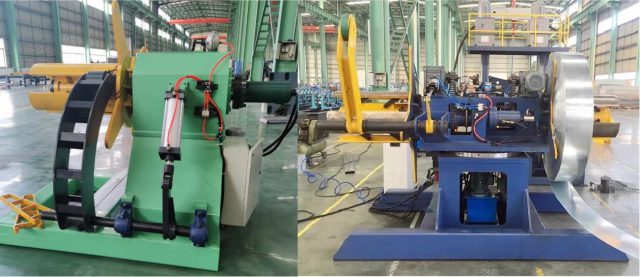

Uncoiler

1. Type: Mechanical Uncoiler, Hydraulic Uncoiler
2. Load capacity: 6T

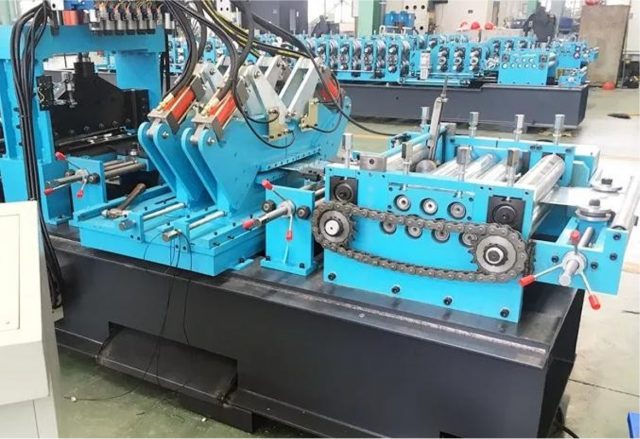

Purlin Main Machine

1. Roller material: GCr15 with heat treatment, polishing and galvanizing.
2. Main motor: hydraulic motor or servo motor drive
3. CZ Interchange: interchange between C and Z purlins controlled by PLC and set through touch panel.
4. Size Change: size change also controlled by PLC and set through touch panel, continuously adjustable.

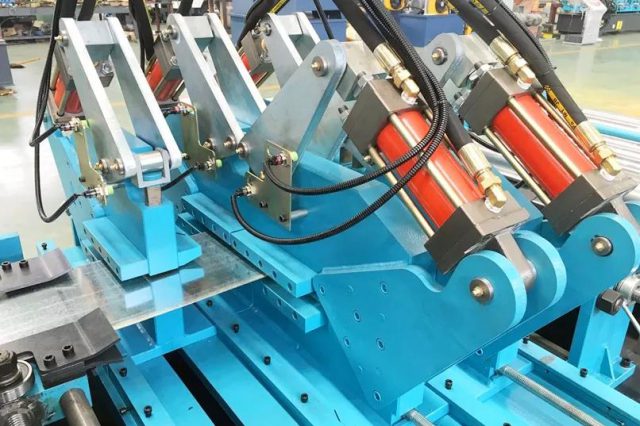

Hydraulic Punching & Universal Cutting System

1. Punching unit: 3 sets + 2 sets
2. Universal cutters for all purlin sizes.
3. Cutting length, cutting pieces, and punching are controlled by PLC.

Technical Specification of CZ Purlin Machine

If you are interested in this machine,please contact us
