Gearbox transmission metal roofing sheet rolling forming machine for Algeria - ZTRFM

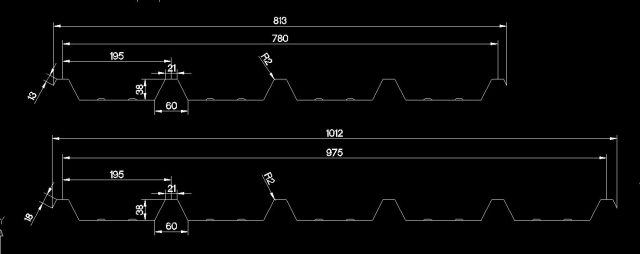

Gearbox transmission metal roofing sheet rolling forming machine for Algeria is designed to handle the thickness around 0.8 to 1.2mm metal roofing sheet in batch fully automatically. Different with other market, mostly the Algeria requires thickness of the metal sheet to 1.2mm, so we design the machine using the gearbox as transmission. And the machine working speed can reach 35 meter per minutes. Take the popular drawing profile in Algeria for example to show you how the machine is designed.

By one Gearbox transmission metal roofing sheet forming machine for Algeria it can both make those two profiles by adjust the input coil width handrails

Gearbox transmission metal roofing sheet forming machine for Algeria features:

  1. It uses the molding frame of thickness 45mm as themain frame.
  2. It used the gearbox as transmission for small noise when working and fast speed.
  3. When working, its speed can reach 35 meter per minutes.
  4. It has remotor by whichyou can control the machine like the cellphone. Stop, run and fast or slow.
  5. As the whole frame, we use the 400H beam,the machine is durable, it can use more 10 years.
  6. As it use separated molding rolling, the metal sheet shape will be more beatuful.
  7. The powercan be give more smoohly when working by gearbox.

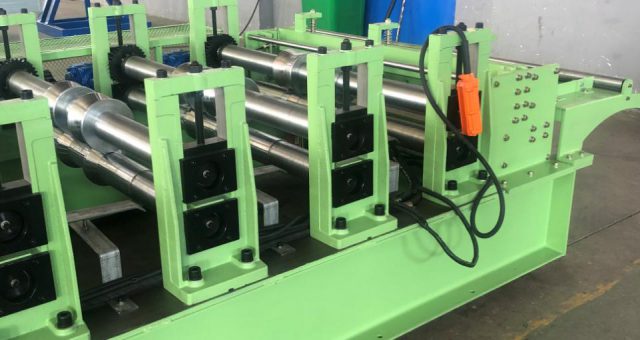

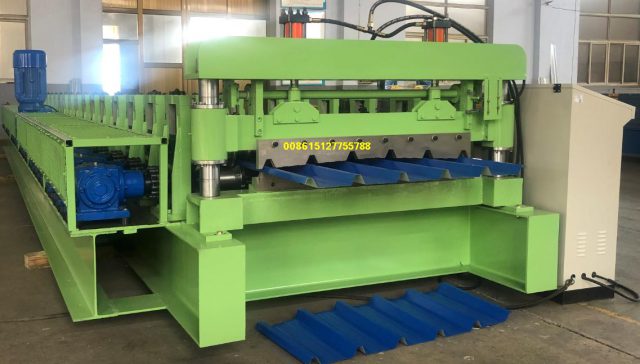

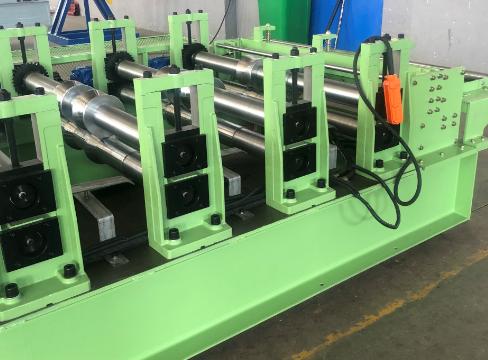

Gearbox transmission metal roofing sheet forming machine for Algeria machine pictures for your reference:

Gearbox transmission metal roofing sheet forming machine for Algeria parameters for your reference:

No.                    Main parameter
1  Length of the main part  11500 х 1650 х 1450 mm
2  Weight of main part  10 Ton
3  Voltage  380 V/ 50 HZ 3 Phase (as customer’s request)
4  Roller fixer  Middle plate welded
5  Frame  400 H steel welded
6  Frame thickness  22mm thicker to be very strong
7  Drive mode Gearbox
8  Material of rollers  45# steel, surface hard chromium plating.
9  Material of shafts  45# steel
10  Diameter of shafts  Φ 105 mm
11  Number of rollers 22 rollers
14  Main power  15 kw=7.5kw by two motors

Why choose Gearbox transmission metal roofing sheet forming machine for Algeria style machine:

  1. HIGH DUTY STRUCTURE

The structure we use for this machine has the higher duty mechanical behavior;

Molding frame type, Europe standard;

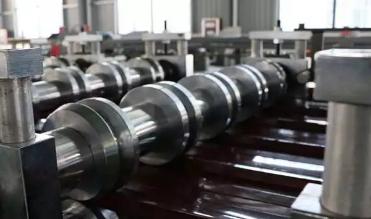

2.ROLLERS

The rollers processing by twice CNC machining and hard chromed, HRC 58-62;

Shaft diameter is 76mm for standard;

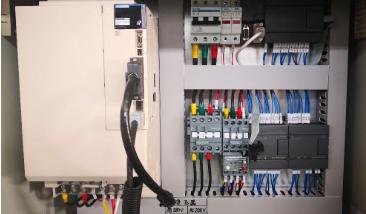

3.FAMOUS BRAND PLC

  1. PLC controller  — Siemens
  2. Transducer — Yaskawa
  3. Encoder — KOYO
  4. Other electronic component- Schneider

  1. AUTO STACKER (optional)

4/6/8/10/12 meters long for choice;

Single layer and double layer;

Max stacking weight is about 4 tons;
