Double layer 5V roof sheet and corrugated sheets forming machine for Chile market

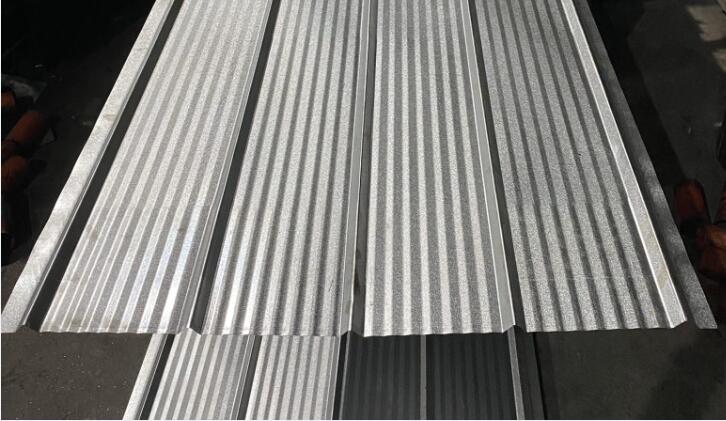

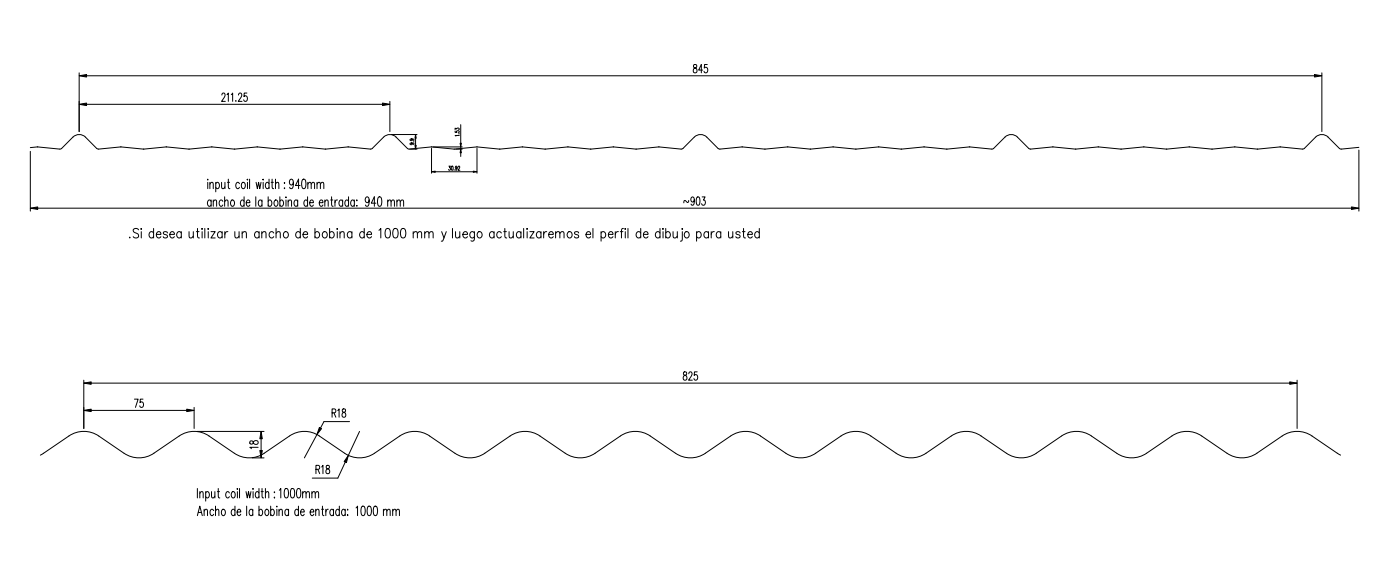

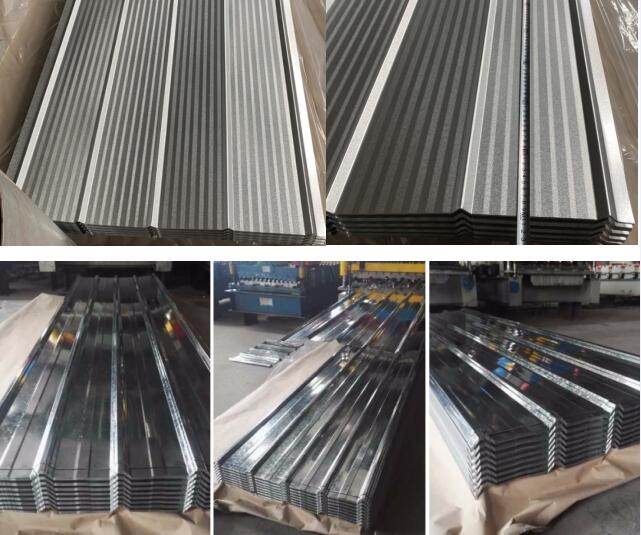

Double layer 5V roof sheet and corrugated sheets rolling forming machine for Chile market is quite popular in the Chile. Based on the market requirements, we design this double layer roofing sheet machine for Chile market. Here are two popular drawing profile for your reference:


Raw material PPGI,PPGL,GI,GL,Aluminum
Raw material width According to the profile of the machine, we can free to design the profile for the customer
Frame 350H steel/400H steel/ Or customized
 Side panel 16mm/18mm/20mm according to the machine quality
 Roller  11-24 rows according to specification of the product
 Roller material  #45 steel, forged and chrom-plated
 Motor  Delta/Siemens/ Or customized
 Motor power  5.5Kw/7.5Kw/ Or customized
Drive way  By chain
Chain size 1 inch/ 2inch / customized
Cutting way Hydraulic cutting
Cutting blade material Cr12 mov
Hydraulic power 5.5Kw/7.5Kw/ Or customized
Control system  PLC control system,(the operate table can rotate 360°)
PLC brand  Delta/Siemens/ Or customized
 PLC language Chinese/English/Spanish/Russian
Cutting tolerance ±2mm
Speed 8-12m/min (if customer need the more speed, we will design by using the servo motor)

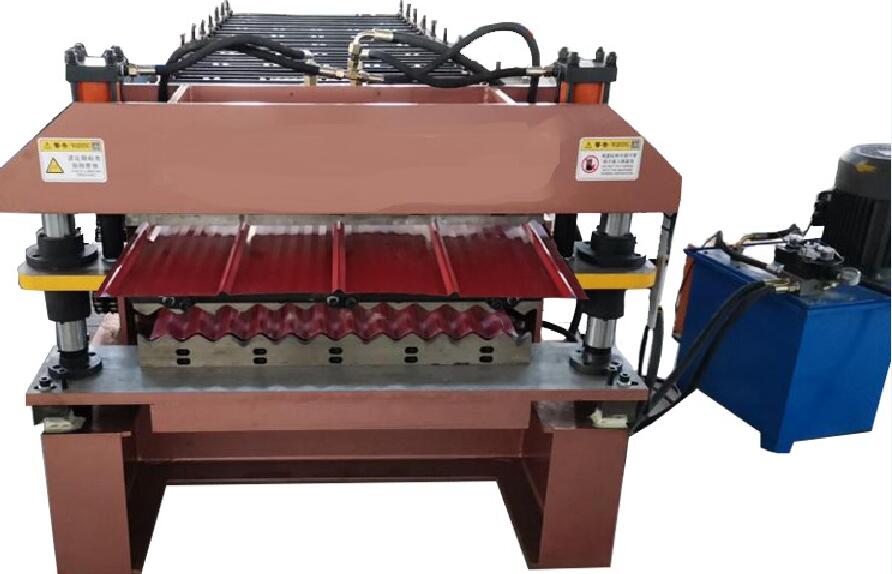

Double layer 5V roof sheet and corrugated sheets rolling forming machine:

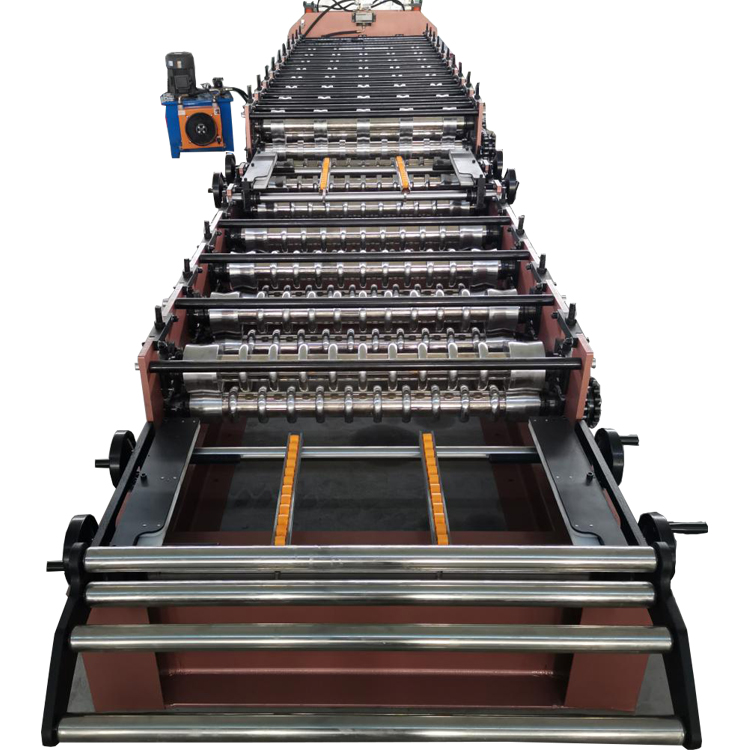

Double layer metal roof profile machine
No. Name Unit Qty Remark
Part 1 5T manual decoiler set 1 You can choose hydraulic one instead
Part 2 Guide feeding device set 1 With hand cutter
Part 3 Main roll former set 1 Chains drive
Part 4 PLC control station set 1 Delta brand
Part 5 Cutting system set 1 Hydraulic
Part 6 Hydraulic oil pump station set 1 With cooling fan
Part 7 Simple collect table set 1 You can choose automatic stacker instead
Part 8 Spare parts set 1


Advantages of Double layer 5V roof sheet and corrugated sheets rolling forming machine for Chile market:

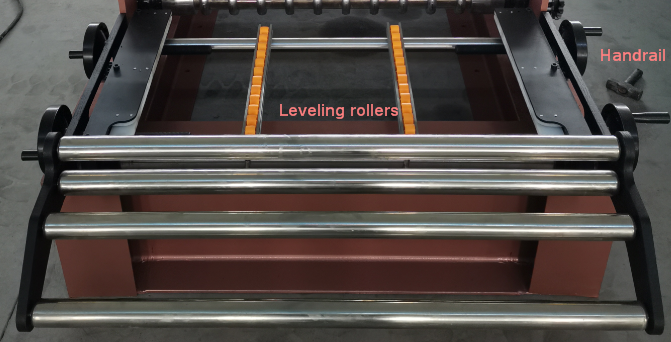

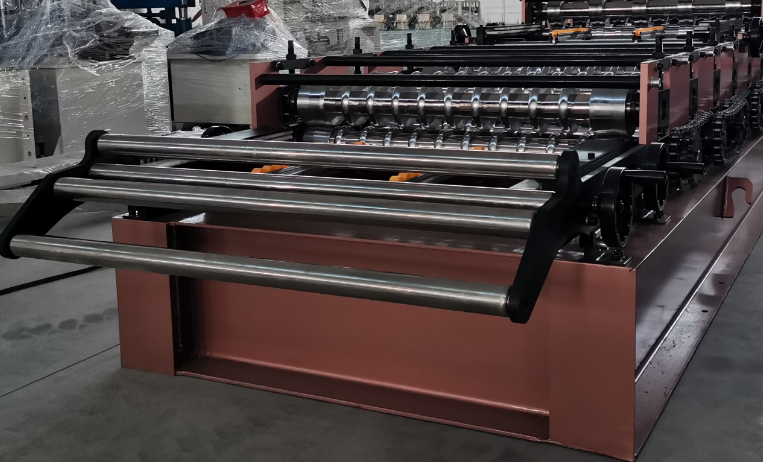

  1. For the leveling rollers and handrail for easy to feed coil and protect the surface of the coil.



2.Strong base frame for long time to use and double chain to make sure the machine transmission powerful.

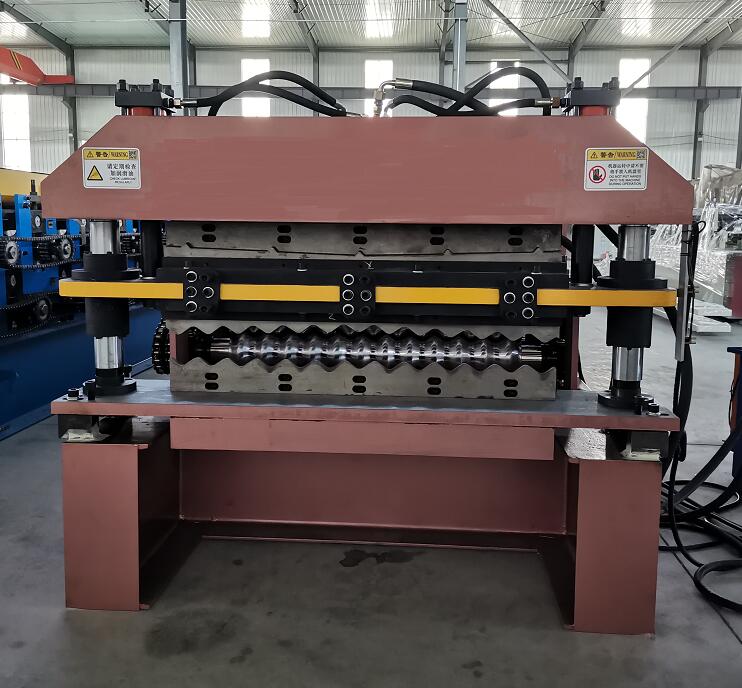

3.For the shearing part, we use the strong and high quality hydraulic jacks for you to use. We use the strong holding board to protect the cutter holder.


Here is the machine working video for your reference:
