Customer requirements:

Material thickness: from 0.4- 1.2mm

For the slitting:when thickness at 1.0mm, slitting 5 pieces.

When slitting 1.2mm,  slitting 3 piece.

Material:GI, PPGI and others. But if you want to slit stainless steel, please tell us and then we will change the cutting blade material for your reference.

The brand of parts as below:

1/ Siemens Motor

2/ Sunny Pump

3/ Schneider electrical

4/ Rexroth valve

5/ Omron encoder

We will adopt the world top brand parts on the machine, to make sure the machine high accuracy and stable for usage.

WORK FLOW

DECOILER—LEVELING&FEEDING—PLASTIC FILMING—SLTTING— SHEARING— PRODUCT RECEIVING TABLE

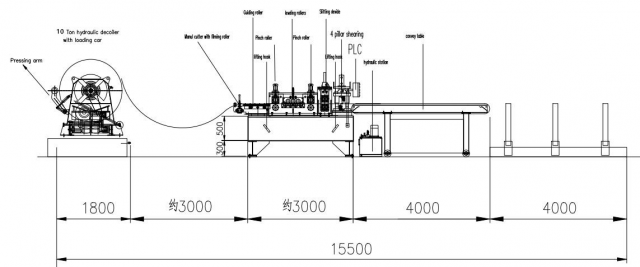

Cut to length machine with leveling and slitting function production line picture for your reference:

1. 10 tons hydraulic decoiler with car and upenderif you need.

Coil loading car: (Regarding the loading car, the min height that can be lowered is 540mm, and the max height is 925mm. If you have special requirements, please let us know in advance.)

1) The car can move levelly and vertically, which is convenient for putting the steel coils into the de-coiler.

2) It is driven vertically by hydraulic cylinder with 4 guide pillars

3) The level movement is driven by motor

4) Driving motor power: 0.75 kw, max capacity is 10 Ton.

Function: It is used to lift up and down, move forward and back to make it easy to load the coils on decoiler.

Hydraulic controls lifting, motor drives moving. The car is controlled on the auxiliary control panel. Its moving speed is 6-7 m/min. When coils on decoiler, car will return back to the start position. It can also carry back the unfinished coils from decoiler.

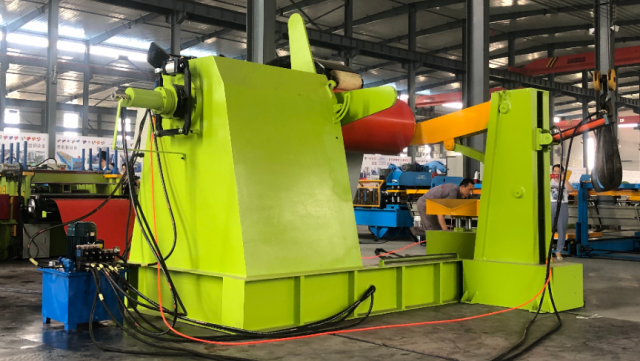

Auto decoiler:

1) Supporting the coils and doing uncoiling. The capacity is 10 Tons(max). Equipped with the brake system

2) It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.

3) Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.

Max coil width: 1250 mm

Feeding speed: 0-60 m/min (adjustable)

Driving motor power: 5.5 kw

Hydraulic motor power: 5.5 kw

4) Structure: welding by the steel plates and profiled bar.

Inner diameter 550-650mm (Remarks: The adjustment range of the max inner diameter and the min inner diameter is within 100mm, and the adjustable range can be increased through the gasket.)

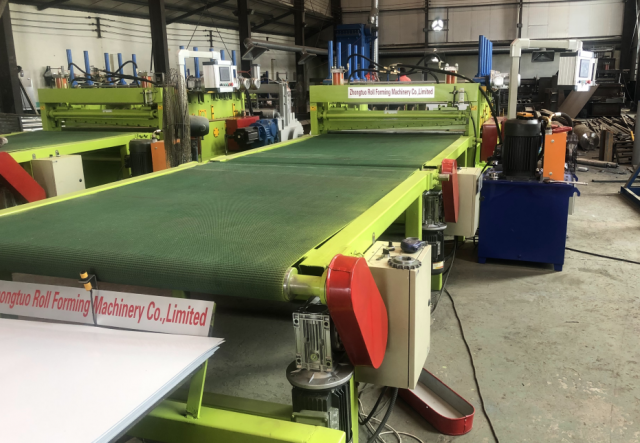

Here is the machine working for your reference:

We only has one set ready machine, anyone needs, please contact us at once.
